Products

  • Introduction
  • 3D View
  • Media
  • Products Feature
  • Major Vehicles
home-cvt7
cvt-7-logo

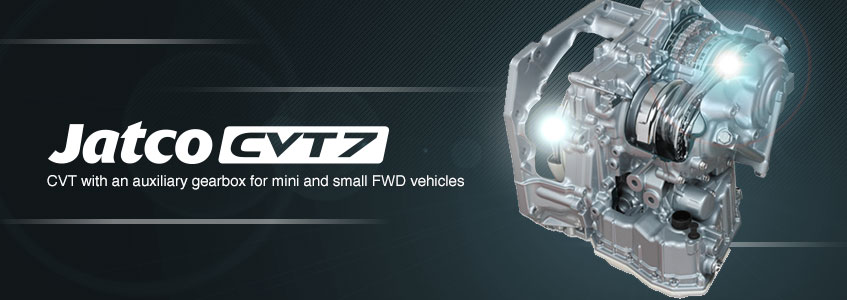

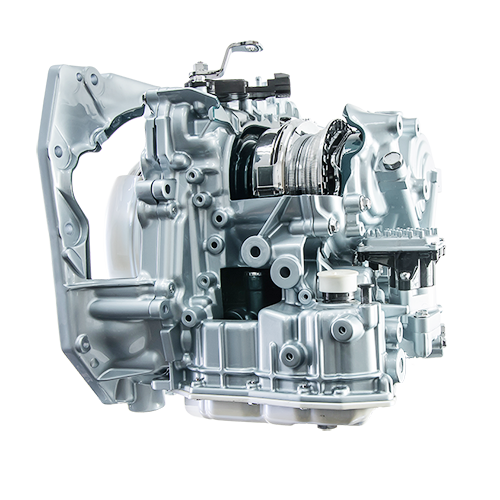

CVT with an auxiliary gearbox for mini and small FWD vehicles

With its new-structure auxiliary transmission system, the new-generation CVT increases the gear ratio range, and friction-reduction technology and realizes enhanced fuel efficiency as well as great driving performance, aiming for significantly improved environmental performance as highly expected. Furthermore, the reduction in size and weight expands its applicability to a broader range of vehicles including mini-vehicles and small-sized vehicles.

3D View

3dslide-left
Your browser does not support the video tag.
3dslide-right
Remark : This content will show on IE9 version above.

Media

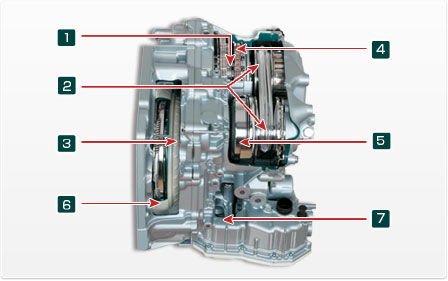

Product Feature

gearbox
1

World's first*1 application of an auxiliary gearbox

World-leading level gear ratio 7.3)
2

Smaller pulley

Down sizing and weight reduction by 13% realizes higher fuel efficiency.
3

Use of a super-flat torque converter

Full length of the transmission cut by 10%
4

Integration of a clutch and an auxiliary gearbox

Full length of the transmission cut by 10%
5

Lower oil agitation resistance

Improved fuel economy by reducing friction by 30%
6

Use of a low-rigidity lock-up damper

Improved fuel efficiency by the wider lock-up area
7

Use of high-efficiency oil pump

Improved fuel efficiency
jt-01

The world-leading level gear ratio coverage for enhanced quietness, and responsiveness on starting and acceleration

The revolutionary-structure which combines of the belt CVT with an auxiliary transmission (two-step gear change) realizes the world-leading level gear ratio coverage, as well as enhanced responsiveness on starting and acceleration and improved quietness in high-speed driving.

jt-01

Reduced friction

Reduction in pulley size, oil agitation resistance, etc. realize friction cut by 30% compared with conventional CVTs of the same class.

jt-01

Smaller and lighter

The two-step gear change by an auxiliary transmission realizes smaller pulleys, reducing the overall length by 10% and weight by 13% compared with conventional CVTs of the same class.

Major Vehicle

  • Suzuki SWIFT
  • Suzuki CIAZ
  • Suzuki CELERIO
